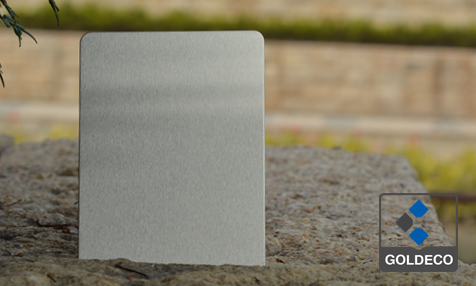

430 No.4 stainless steel sheet, this steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid. and it is used widely for a kitchen appliance, like kitchen cabinet face panels.
430 No.4 stainless steel sheet | |
Grade | 430 |
Thickness | 0.3-3.0MM |
Size | 1000*2000MM/ 1219*2438MM |
Surface finish | 2B/ NO.4/ Hairline/ 8K Mirror/ ... |
MOQ | 1 Ton / 50 sheets |
Standard | JIT/ AISI/ ASTM/ DIN/ TUV/ GB |
Origin | Pocso/ Tisco/ Lisco/ Jisco/ Bao steel/ H Wang |
Patterns | N/M |
Surface Color | Original |
Surface Protective Film | 70 Micro Laser PE/Fish head PE/ Black & White PE/PVC |
Sticker | Neutral Sticker |
Lead time | Depends on the size of the order. Normally within 5 days. |
Packing | Standard export packing, each weight around 2 Metric tons, selective in different packing types |
Payment Terms | T/T or L/C, TT is preferred |
Application | For kitchen cabinet, benches, trolleys, hood, tables, food machines, chemical containers, sinks, bill boards, doors and gates, mailboxes, artworks, elevators, wall panel, cladding |
Preshipment inspection | Optional |
MTC | Available according to the request. |
Preshipment inspection | Optional ( SGS / BV / ... ) |
What is 430 stainless steel?
Stainless steel grade 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
The chemical compositions of various elements of grade 430 stainless steels are tabulated below.
Chemical compositions of grade 430 stainless steels:
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
430 | min. max. | - 0.12 | - 1 | - 1 | - 0.04 | - 0.030 | 16 18 | - | - 0.50 | - |
Mechanical properties of grade 430 stainless steels
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
430 | 483 | 310 | 22 | 85 | 183 |
Note: These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.
The following are the applications for stainless steel grade 430:
- Kitchen appliance panels
- Dish washer linings
- Refrigerator cabinet panels
- Element supports and fasteners
- Stove trim rings and chimney liners
- Automotive trim and lashing wires
For any further questions about this kind of material, please feel free to contact us.
FAQs for 430 No.4 Stainless Steel Sheet
Q 1:What is 430 stainless steel?
A: Stainless steel grade 430 is a non-hardenable steel containing straight chromium, and belongs to the ferritic group of steels. This steel is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
Q2: Does 430 stainless steel rust?
A: it is ferrotic stainless steel, it will rust, but still it has good performace, it is known for its good corrosion resistance and formability, coupled with practical mechanical properties. It can be used in certain chemical applications due to its resistance to nitric acid.
Q3: What is the No.4 finish?
A: No.4 finish is the most popular surface finish, No. 4 Finish is produced with short, parallel polishing lines. These lines extend uniformly along the length of the coil. It is obtained by mechanically polishing with gradually finer abrasives. Depending on requirements, the final finish can be between 120 to 320 grit. High grit numbers create finer polishing lines and more reflective finishes. The surface roughness is typically Ra 25 micro-inches or less. This is a general-purpose finish and is widely used for kitchen/restaurant equipment, food processing, and dairy equipment.
Q4: Do you accept cut to length service?
A: Of course, customer satisfaction is our top priority.
Q5: If I have a small order, do you accept small order?
A: Not a problem, your concern is our concern, small quantities are accepted.
Q6: How can you guarantee your product quality?
A: First, from the very start, we have already implemented a spirit to their mind, that is quality is life, our professional workers and staffs will follow up every step till the goods packed well and shipped out.
Q7: Will you pack the products?
A: Professional people do professional packing, we have different types of packing optional to customers, economic one or better one.
Q8: What do you need to know from the customer before accurate quotation?
A: For an accurate quotation, we need to know the grade, thickness, size, surface finish, color, and quantity of your order, and also the destination of the goods. Customized product information will be needed more, like drawing, layout, and plan. Then we will offer a competitive quotation with the above information.
Q9: What kind of payment term you accept?
A: We accept T/T, Credit Card, West union , L/C.
Q10: If this is a small order, will you deliver the goods near you? for example in Guangzhou.
A: Yes, we are born to solve the problems of our customers, we will get the goods safely to your agent's warehouse in Guangzhou safely, and get you the pictures.
Q11: Do you just make a flat sheet? I want to make a fabrication for my new project.
A: Yes, we mainly produce stainless steel flat sheet surface treatment, at the same time, we manufacture the customized metal finished product as per customer's drawing and plan, our technician will take care of the rest.
Q11: What if I want to sell your product in our market, will you make common surface protection film over the sheet?
A: Yes, we understand that the customer wants to keep the supplier information as a business secret, it will be respected and do as the customer requested.
Q12: I have a few more questions.
A: Just let us know, you will have our timely response. More FAQs.
